| Frameset |
| Frame |
671097 |
 |
High-Tensile Steel, TIG-Welded |
| Rear Frame |
671098 |
|
Rear Frame Unit 17mm Axle Non-Cambered |
| Fork |
28834 |
|
High Tensile Steel, TIG-Welded |
| Drivetrain |
| Rear Shifter |
53069 |
 |
SunRace 7-Speed Twist Shifter |
| Rear Derailleur |
26877 |
 |
SunRace 7-Speed Direct Mount |
| Freewheel |
18804 |
 |
SunRace (7-Speed) 13-28T |
| Freewheel Adapter |
670683 |
 |
Freewheel Adapter, Threaded (for 17mm axle, includes (2) set screws) |
| Crank Set |
211922 |
 |
TranzX, 42T 1/2"x3/32" Chainring with Guard |
| Chain |
16603 |
 |
K.M.C. 1/2 x 3/32" (214 Links) |
| Chain Tube |
16461 |
 |
Guide Tube |
| Chain Tube Bracket |
16241 |
 |
Double Spring w/Hardware |
| Chain Tube Clamp |
|
|
Clamp w/Hardware |
| Pedals |
41809 |
 |
Resin Body, 9/16" |
| Brakes |
| Rear Brake Lever |
12417 |
 |
Promax, Linear Pull, w/Lock |
| Front Brake |
13260 |
 |
Alloy, Linear Pull |
| Rear Brake |
120222 |
 |
Promax Disc Pair w/160mm Rotor |
| Components |
| Headset |
35042 |
 |
Steel, Caged Bearings, 25.4 x 34 x 30mm |
| Handlebar |
34814 |
|
Steel, Recumbent, 570mm Wide x 477mm Rise x 25.4mm Clamp |
| Stem |
570075 |
|
Steel, 25.4 x 280mm Quill x 40mm Ext. x 25.4 Clamp |
| Grips |
32364 |
|
Locking, 130mm Left / 65mm Right |
| Front Brake Lever |
12416 |
 |
Promax, Linear Pull, w/Lock |
| Rear Brake Lever |
12417 |
|
Promax, Linear Pull, w/Lock |
| Wheels |
| Front Hub |
371513 |
 |
Alloy, 28H x 13G x 3/8" Bolt-On Axle |
| Rear Hub |
371514 |
 |
Trike Alloy, Pinned, 36Hx 13G |
| Front Rim |
470820 |
 |
16" x 28H x 13G, Alloy |
| Rear Rim |
470821 |
 |
20'' x 36H x 13G, Alloy |
| Spokes |
|
|
13G Stainess Steel ED Blk with brass nipples (F-138 / R-181 / N-12mm) |
| Front Tire |
60209 |
 |
Kenda Kwest 16 x 1.50", Black Wall |
| Rear Tire |
60210 |
 |
Kenda Kwest 20 x 1.50", Black Wall |
| Weight |
| Weight |
|
|
78 Lbs. |
| Weight Limit |
|
|
300 Lbs. |
| Notes |
| Pricing & Specifications |
|
|
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
| Replacement Parts |
| Axle - Rear |
670685 |
 |
Rear Axle, Trike, 17mm x 765mm (Includes (1) axle, (2) nuts, (2) washers, (1) axle spacer) |
| Axle - Bearing |
19125 |
 |
Rear Unit Axle Bearing 17id x35od x10w E-Delta |
| Axle - Retaining Nut |
670676 |
 |
Rear Unit Axle Nut (for 15mm / 17mm axle) |
| Brake - Disc Rotor Adapter |
670684 |
 |
Disc Brake Adapter, 6-Bolt (for 17mm axle) |
| Seat - Frame |
50181 |
 |
R-Type 1-Pc Steel, Black |
| Seat - Mesh |
50034 |
 |
R-Type 1-Pc Seat Back Mesh |
| Seat - Pad |
50042 |
 |
R-Type 1-Pc Seat Pad 15.5x13x2in, Black |
| Seat - Mount |
50630 |
|
Steel for Eco Delta/Tad 50mm TT |
| Seat - Mount Binder |
50182 |
 |
Alloy, Quick Release, M6x95mm |
| Seat - Upper Strut |
67894 |
|
Steel, 150mm |
| Seat - Lower Strut |
50044 |
 |
Steel, Pin Type, 700mm Universal |
| Seat - Upper Strut Bolt |
49672 |
 |
M5x35mm |
| Seat - Upper Strut Washer |
49671 |
 |
Curved Nylon Washer |
| Seat - Lower Strut Slide Bolt |
67238 |
|
Lower Strut Bolt and Nut |
| Seat - Strut Clamp |
67237 |
 |
Pin with QR |
| E-System - Battery |
671100 |
 |
Li-Ion Battery, 36V/13.4Ah, for eDelta |
| E-System - Battery Charger |
671102 |
 |
Smart Charger, 36V/2A for eDelta |
| E-System - Display/UI |
671103 |
 |
TranzX LCD, Handlebar Mount |
| E-System - Motor |
671099 |
 |
TranzX 250W/36V Mid-Drive Motor |

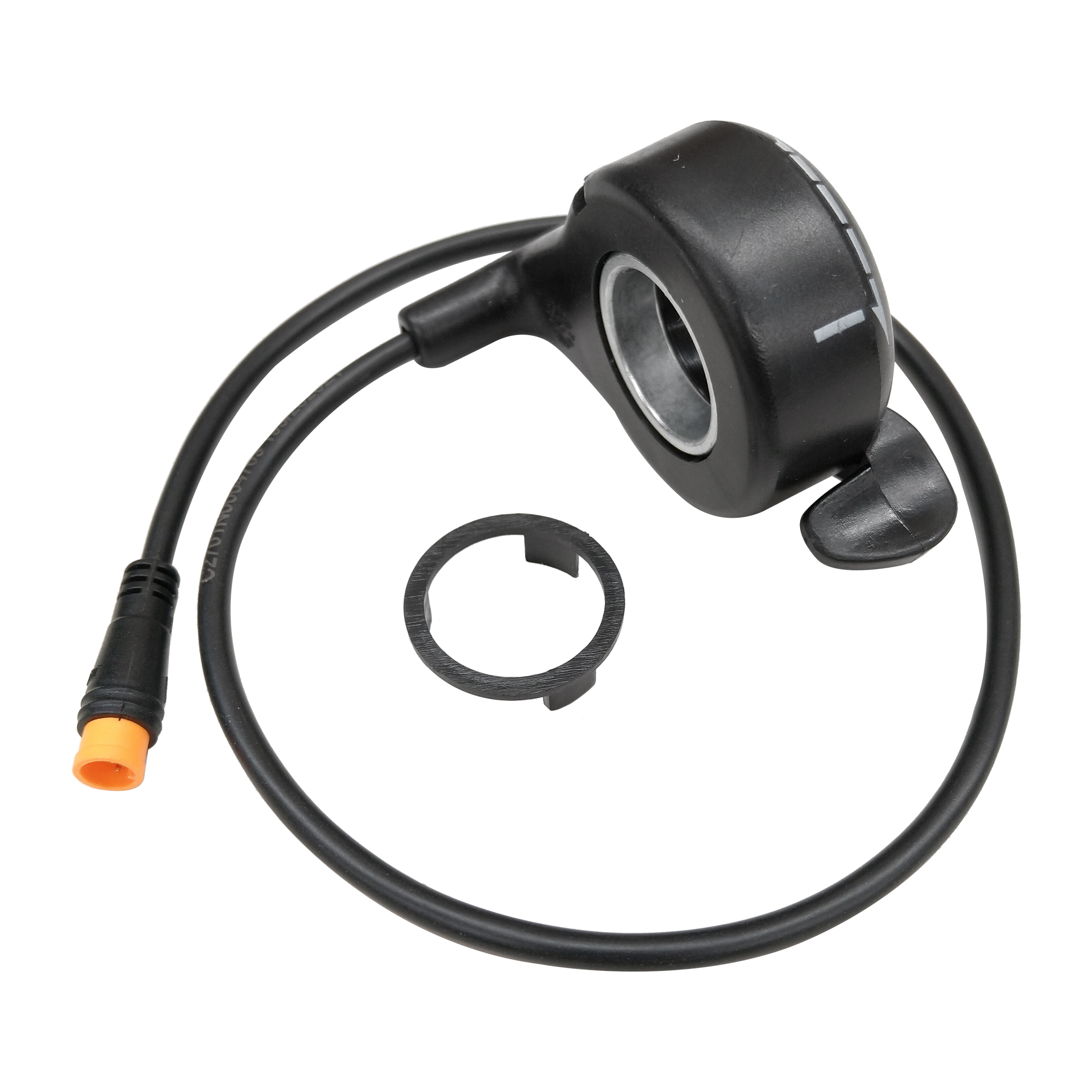

| E-System - Throttle |
671110 |
 |
TranzX Thumb Throttle |
