E-System
Rear Wheel Motor 671382 Rear Wheel Motor Bafang 48V x 350 Watt Rear Hub Motor, (55 N·m Max Torque)
Pedal Assist Sensor 212601 Pedal Assist Sensor Bafang Bottom Bracket Integrated Torque & Cadence Sensor
Display 671378 Display Bafang TFT Color Display with Bluetooth 5.0 & Integrated USB-C Charging Port
Throttle 671380 Throttle Removable Thumb Throttle
Battery 671385 Battery Bafang 48V / 15AH (720 Watt Hours) Li-ion Battery
Charger 671394 Charger Bafang 48V / 2 Amp Smart Charger (7-8 hours to fully charge from empty)
Speed Speed 20 MPH Maximum Motor Assisted Speed (Class 2)
Range Range Up to 60 Miles (Range varies with weight, terrain, wind, pedaling, and throttle use)
UL Certifications UL Certifications UL 2271 (Battery) and UL2849 (Complete System) Compliant by ACT Lab
Frameset
Frame 671375 Frame Pure Cycles 6061 Alloy
Fork 270054 Fork Pure Cycles 6061 Alloy Blades with 1x1/8 Chromoly Steerer
Drivetrain
Crankset 212599 Crankset Alloy, Three-Piece, 170mm
Chainring 212600 Chainring Steel, 44T
Bottom Bracket 212601 Bottom Bracket Sealed Cartridge with Cadence & Torque Sensor
Freewheel 180299 Freewheel Shimano TZ500, (7-Speed) 14-34T
Chain 16603 KMC Z7 1/2" x 3/32"
Rear Derailleur 250669 Rear Derailleur Shimano RD-M310 Altus
Rear Shifter 530448 Rear Shifter Shimano SL-RV200 7-Speed Revo Twister Shifter with Optical Gear Display
Pedals 410426 Pedals Slip Resistant Top, 9/16", Black
Brakes
Front Brake 121378 Front Brake Tektro Mechanical Disc with 180mm Rotor
Rear Brake 121378 Rear Brake Tektro Mechanical Disc with 180mm Rotor
Brake Lever 121380 Brake Lever Tektro Alloy, 4 Finger
Components
Handlebar 330149 Handlebar Alloy, 680mm Wide x 100mm High with cross bar
Stem 570397 Stem Alloy, 31.8mm x 60mm Ext. x 7 Deg. Rise
Headset 350045 Headset Semi Integrated, Steel with Caged Bearings, 25.4 x 44 x 30mm
Grips 310520 Grips Kraton Rubber Ergonomic, L-135mm/R-92mm, Black
Saddle 490110 Saddle Velo VL-6470 Dual Density
Seat Post 52774 Seat Post Alloy, 30.9 x 350mm
Seat Clamp 52775 Seat Clamp Alloy 34.9mm
Front Light Front Light
Rear Light Rear Light
Wheels
Front Wheel 641335 Front Wheel 27.5" x 36H 13g, Sealed Bearing, 6-bolt disc
Rear Wheel 641336 Rear Wheel 27.5" x 36H 13g, 48V x 350W Bafang, 6-bolt disc
Spokes Spokes Front 13G and rear 13G stainless steel with CP Brass Nipples (F: ND 272mm - D 271mm / R: ND 234mm - D 233mm / N-16mm)
Rims 471109 Rims Alloy Double Wall, 27.5” x 36H
Tires 594065 Tires 27.5" x 2.35", Black Wall
Tubes 63536 27" x 2.35", Schrader Valve
Included Extras
Kickstand 915433 Kickstand Alloy Direct-Mount
Rear Rack 450561 Alloy Direct Mount with MIK HD and Mounting Hardware for Size Medium Pure Cycles FLUX Only (Optional Accessory Sold Separately)
Front Light 915434 Front Light LED Front Light with DRL Bezel
Rear Light 915436 Rear Light LED Rear Light with Deceleration Sensor Brake Light
Replacement Parts
Replacement Der Hanger 671377 Replacement Der Hanger Replacement Rear Derailleur Hanger with Hardware for Pure Cycles FLUX
Battery 671385 Battery Replacement Battery Pure Cycles FLUX 48V x 15AH
Battery Charger 671394 Battery Charger Replacement Battery Charger Bafang 48v x 2AH
Hub Rear Part 671384 Hub Rear Part Replacement Bolt Kit Bafang EBike Hub Motor
E-System Controller 671381 E-System Controller Replacement E-System Controller Bafang CRA101.C
Hub E-System Stator 671383 Hub E-System Stator EBIKE Replacement Motor Stator Bafang B1

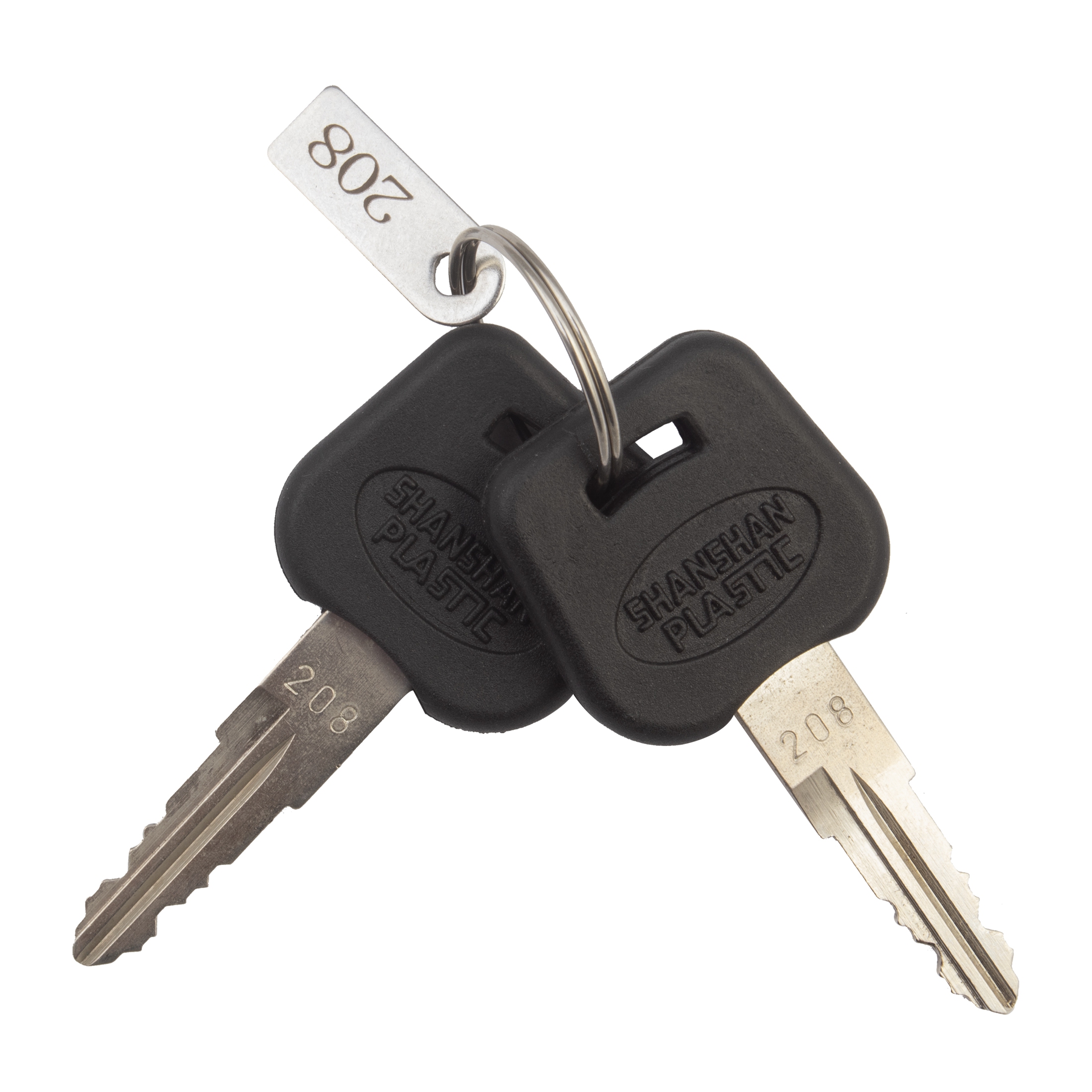

Battery Replacement Key Set 671395 Replacement Key Set Bafang E-System
Battery Cover 671386 Battery Cover Replacement Battery Cover Pure Cycles FLUX
Battery Cover 671387 Battery Cover Upper and Lower Battery Frame for Pure Cycles FLUX with Mounting Hardware
Battery Mount Upper 671389 Battery Mount Upper Upper Battery Mount for Bafang BF F010/F012
Battery Mount Lower 671388 Battery Mount Lower Lower Battery Mount for Bafang BF F010/F012
Charging Port 671392 Charging Port Replacement Charging Port for Bafang for Pure Cycles FLUX
Frame Rubber Grommets 671393 Frame Rubber Grommets Replacement Frame Grommets for Pure Cycles FLUX 2 pieces
Front Light Transit Wire 915435 Front Light Transit Wire Replacement Front Light Transit Wire for Pure Cycles FLUX
Rear Light Transit Wire 915437 Rear Light Transit Wire Replacement Rear Light Transit Wire for Pure Cycles FLUX
E-System Display & Throttle Cable 671379 E-System Display & Throttle Cable Replacement E-System Display and Throttle Cables Pure Cycles FLUX
Weight
Bike Weight Bike Weight 52 lb (24 kg)
Recommended Fit Recommended Fit 5'5" - 6'0" (165 - 183 cm)
Rider Weight Limit Rider Weight Limit 300 Lb. (136 kg) Combined
Notes
Pricing & Specifications Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
