Frameset
Frame 68661 7005 Series Aluminum, TIG-Welded
Rear Frame 68669 Rear Frame Unit Split-Axle Cambered
Fork 27952 1-1/8'' Hi Tensile Steel, Straight Tapered Legs, Single Eyelets
Drivetrain
Front Shifter 53939 SRAM 3.0 3-Speed Grip Shift
Rear Shifter 53941 SRAM 3.0 8-Speed Grip Shift
Front Derailleur 26234 Front Derailleur Microshift 31.8 DP
Rear Derailleur 26270 SRAM X4, Long Cage, Black
Sprocket 69370 Fixed Sprocket 15mm x 18T
Freewheel 18642 SRAM 11-32 8sp
Crank Set 21323 Alloy, 3-Piece, 170x52/42/32T
Bottom Bracket 17126 Sealed Cartridge, 68 x 118mm
Chain Chain 1/2 x 3/32'' (190 Links)

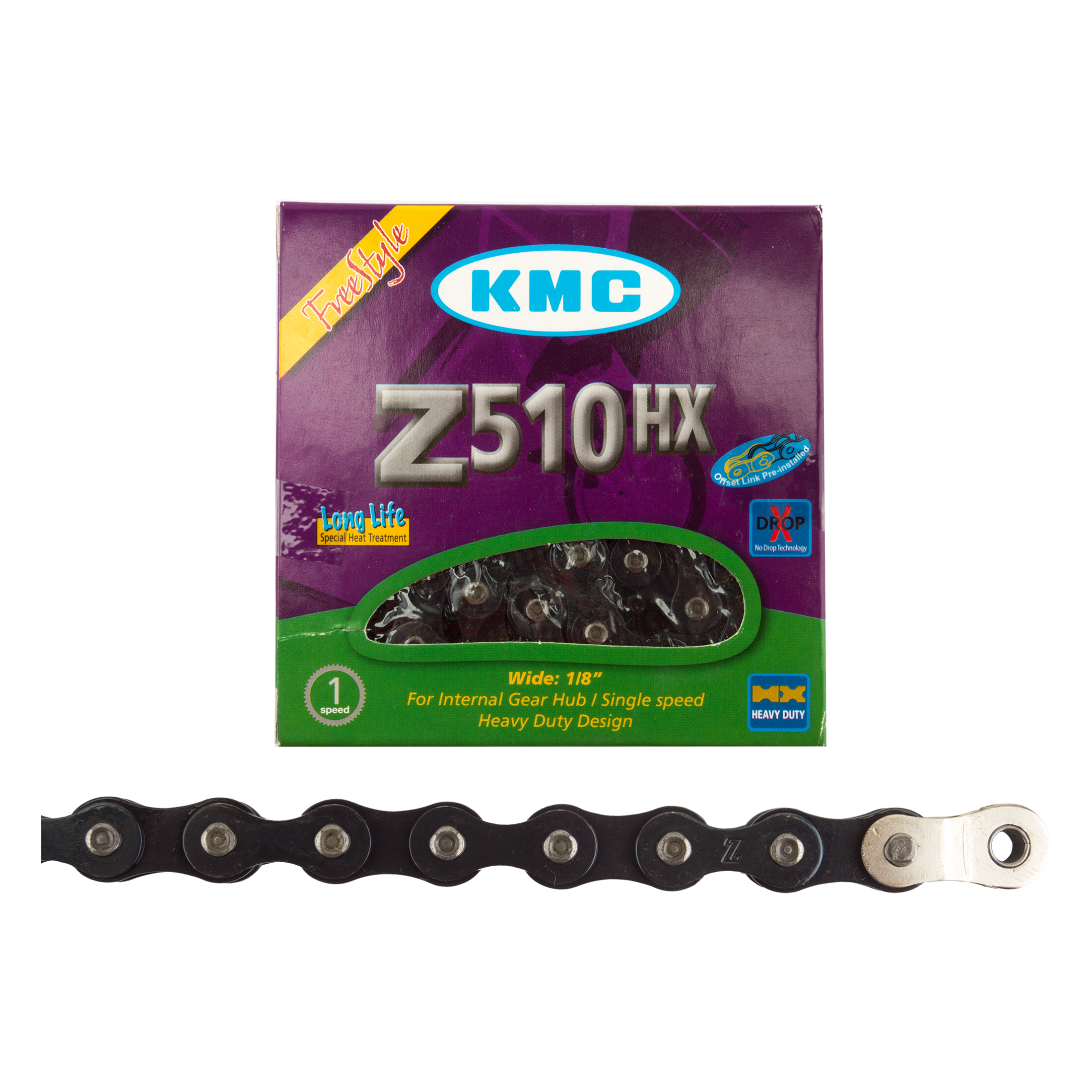

Chain Rear 16481 1/2 x 1/8" (46 Links)
Chain Guide 16233 Single Guide Wheel
Chain Guide Hardware 16234 Guide Wheel Hardware Single
Chain Tube 16236 Guide Tube
Chain Tube Bracket 16239 Double Eyelet Bracket for Guide Tube
Chain Tube Clamp 16242 Clamp w/Hardware
Pedals 67229 Pedals Alloy, Resin Body, 9/16"
Mid Drive Hub 68926 135mm Mid-Hub Cassette 8spd, 6-Bolt Disc
Brakes
Rear Brake Lever 13748 Alloy, Dual Cable Pull
Front Brake 12119 Alloy, Linear Pull
Rear Brake 120145 Rear Brake Promax Disc Pair w/160mm Rotor
Components
Headset 35503 Headset Semi-Integrated, Steel, 28.6 x44 x30mm Black
Handlebar 33774 Handlebar Alloy, Recumbent, 560W x 36deg x 25.4clamp, BLK
Stem Quill Adapter 67737 Stem Quill Adapter Alloy, 28.6x25.4x240mm Black
Grips Grips 2-Tone Kraton Gel
Front Brake Lever 12414 Alloy, w/Park Lock
Rear Brake Lever 13748 Alloy, Dual Cable Pull
Saddle 49638 Contoured Foam w/Tri-Color Cover
Wheels
Front Hub 36043 Alloy, 36H x 14G with Q/R Axle, Black
Rear Hub 37262 Trike Alloy, Splined, Disk, 36H, Black
Front Rim 48167 Alloy, Double Wall 20'' x 36H, MSW w/Eyelets, Black
Rear Rim 48167 Alloy, Double Wall 20'' x 36H, MSW w/Eyelets, Black
Spokes Spokes 14G Stainless Steel ED Blk with brass nipples (F- 178 / RD-181 - RND-186 / N-16mm)
Front Tire 59827 20x1.25 BW Kenda Kwest 100psi
Rear Tire 59827 20x1.25 BW Kenda Kwest 100psi
Weight
Weight Weight 49 Lbs.
Weight Limit Weight Limit 300 Lbs.
Notes
Pricing & Specifications Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
Replacement Parts
Axle - Rear 68677 Axle - Rear Rear Axle X3-AX / EURUS Square, fits L or R
Axle - Bearing 6702184 Rear Unit Axle Bearing 15id x35od x11w
Rear Unit - Hardware 68691 Rear Unit Hardware Kit
Stem - Upper Telescoping 58112 Stem - Upper Telescoping Alloy, 27.2 x25.4 x400mm Black
Stem - Lower Telescoping 58113 Alloy, 350 x28.6 x27.2mm Black
Stem - Telescoping Clamp Stem - Telescoping Clamp Lower Clamp Alloy
Hub - Retaining Bolt 67952 Trike Hub Ret Bolt/Cap for Square or Tapered, Black
Seat - Back 49658 Cool Back Alloy w/2 Bottle Mounting Points
Seat - Back Pivot Bolt 67232 10mm, Chrome
Seat - Cover 49639 Tri-Stitch, Permanent
Seat - Mesh 67218 Cool Back Seat Mesh
Seat - Mount 49646 Alloy, w/Tilt Adjustment
Seat - Mount Binder 50040 QR M6x92mm Alloy w/XL Lever
Seat - Mount V-Block 49647 Alloy, 30mm Black
Seat - Mount V-Block Spacer 49649 Spacer Spring
Seat - Mount V-Block Tube 49650 Spacer Tube
Seat - Upper Strut 67893 Alloy, 150mm Black
Seat - Lower Strut 50043 Alloy, Clamp Type, Universal BLK
Seat - Upper Strut Bolt 49672 M5x35mm w/nut
Seat - Upper Strut Washer 49671 Curved Nylon Washer
Seat - Lower Strut Slide Bolt 67238 Seat - Lower Strut Slide Bolt Lower Strut Bolt and Nut
Seat - Strut Clamp 49673 Alloy, Single Clamp 16.1mm M4 Black
Seat - Strut Peg 49785 Seat - Strut Peg Alloy Stopper 12.8mm Black
Seat - Strut Peg QR 67237 Steel Pin, QR
Seat - Track 49651 Alloy, 550mm Frame-Mounted Track
