Frameset

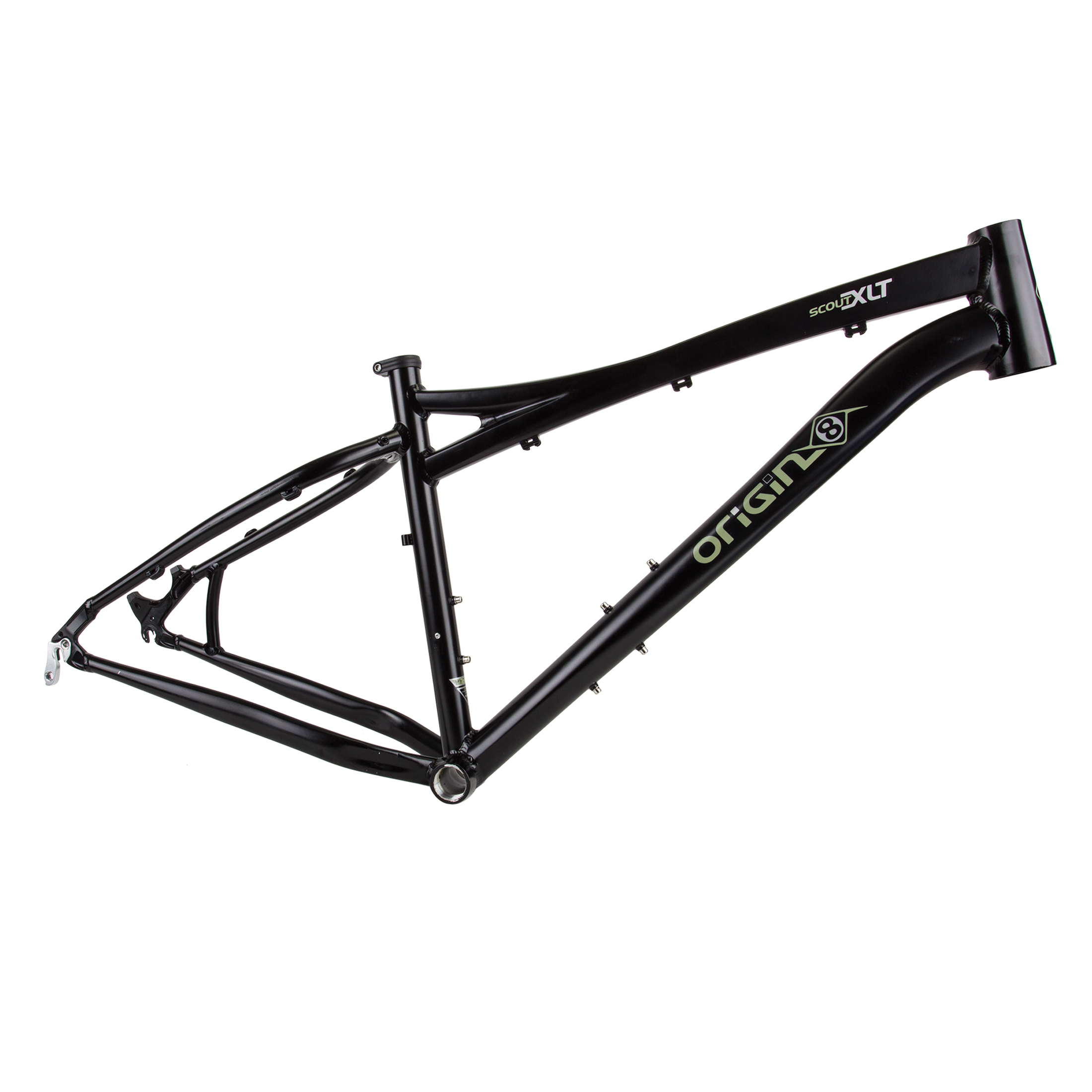

Frame	69523		6061 Custom Hydroformed Aluminum, TIG-Welded

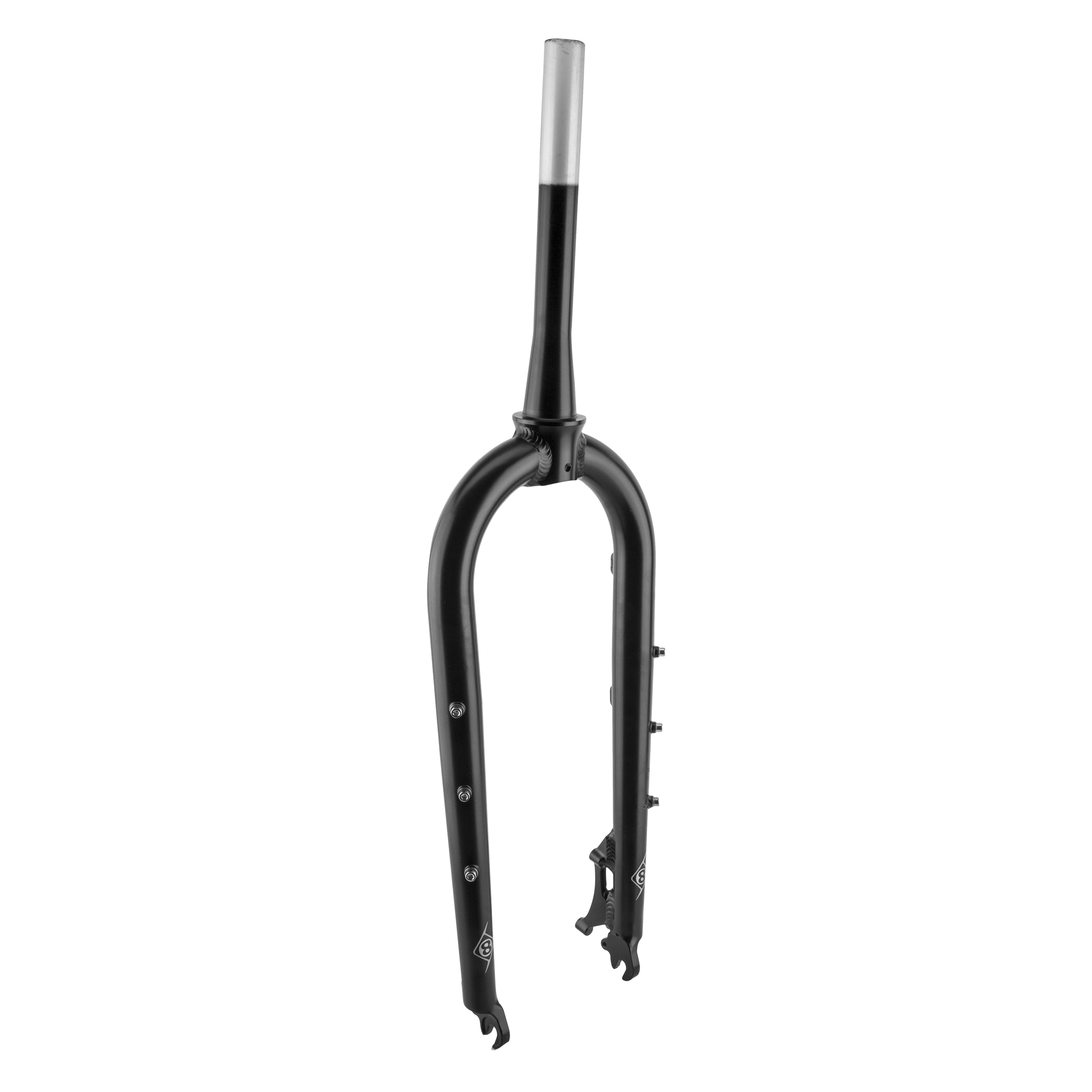

Fork	28407		1-1/8"-1.5" Tapered 7005 Series Alloy, Disc Only
Drivetrain

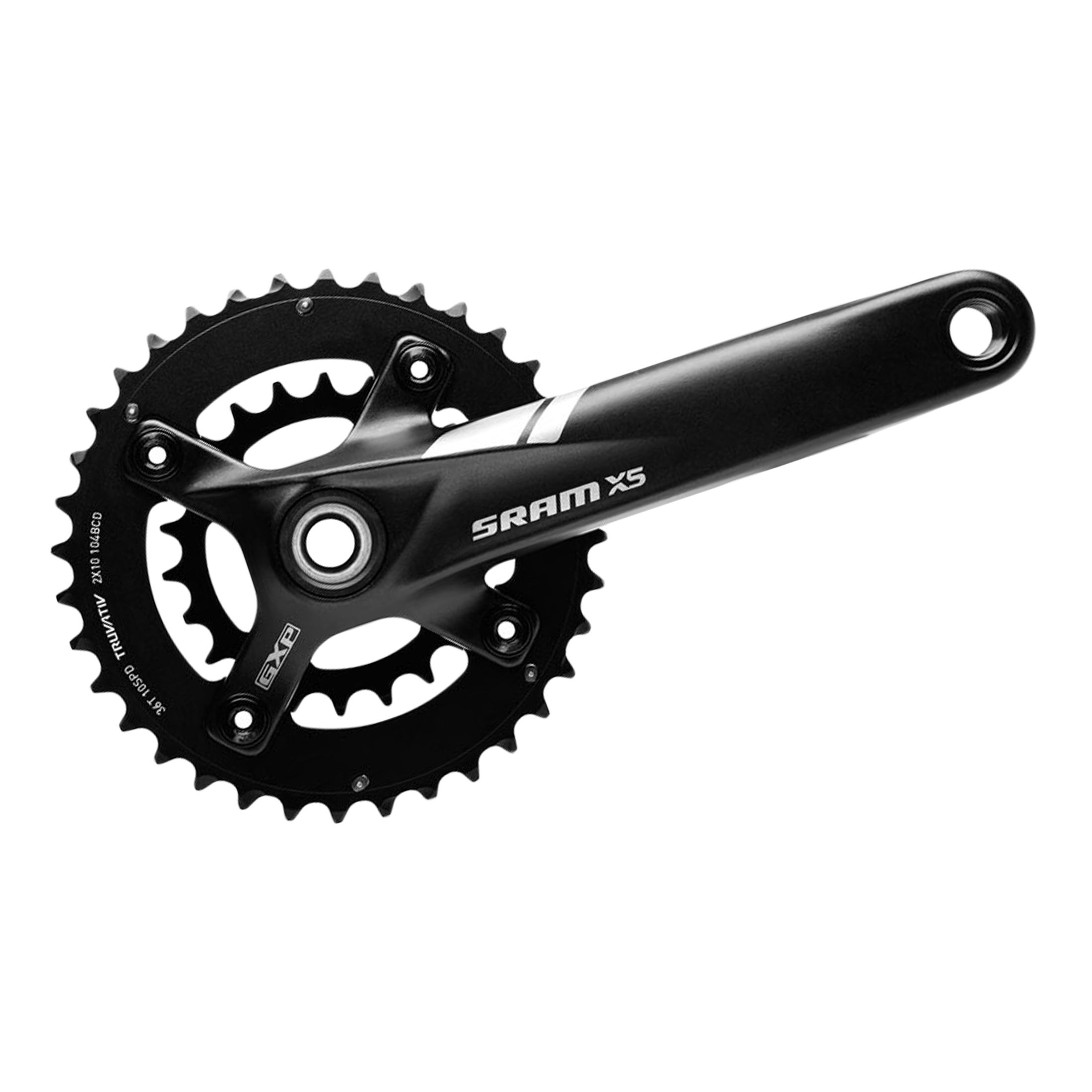

Crankset	17206		SRAM X5 2x10 for 100mm BB (15.5"/170mm) (17.5",19.5", 21"/175mm)
Chainring			SRAM 36/22T (4-Bolt x 120/80 BCD)
Bottom Bracket	210056		Truvativ GXP for 100mm BB
Cassette	18989		SRAM PG1030 11-36 10-Speed
Chain	16354		K.M.C. X10.93, Nickel Plated

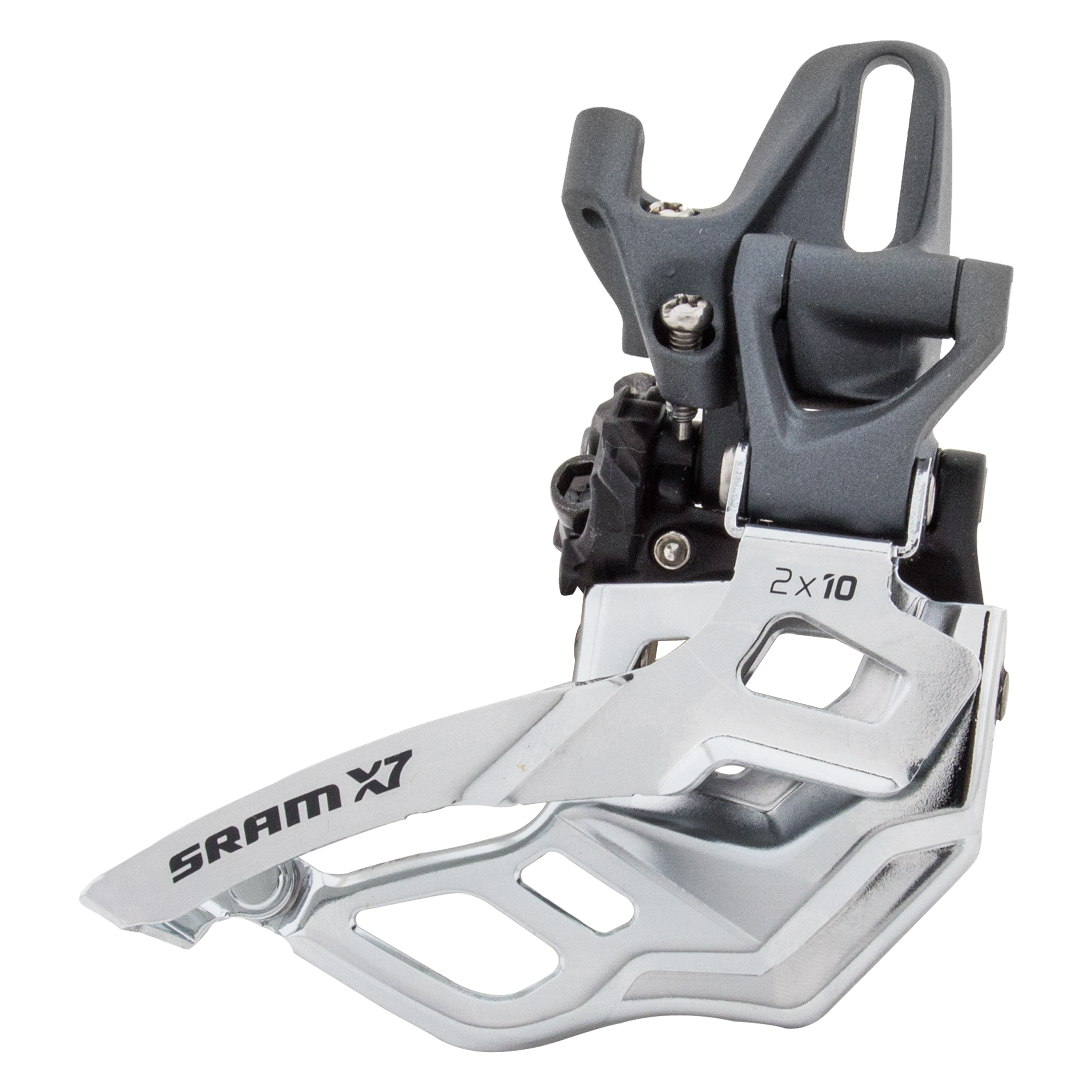

Front Derailleur	26900		SRAM X7 10-Speed DP Direct Mount
Rear Derailleur	26721		SRAM X7 10-Speed
Front Shifter	53032		SRAM X7 2x10 Trigger Shift

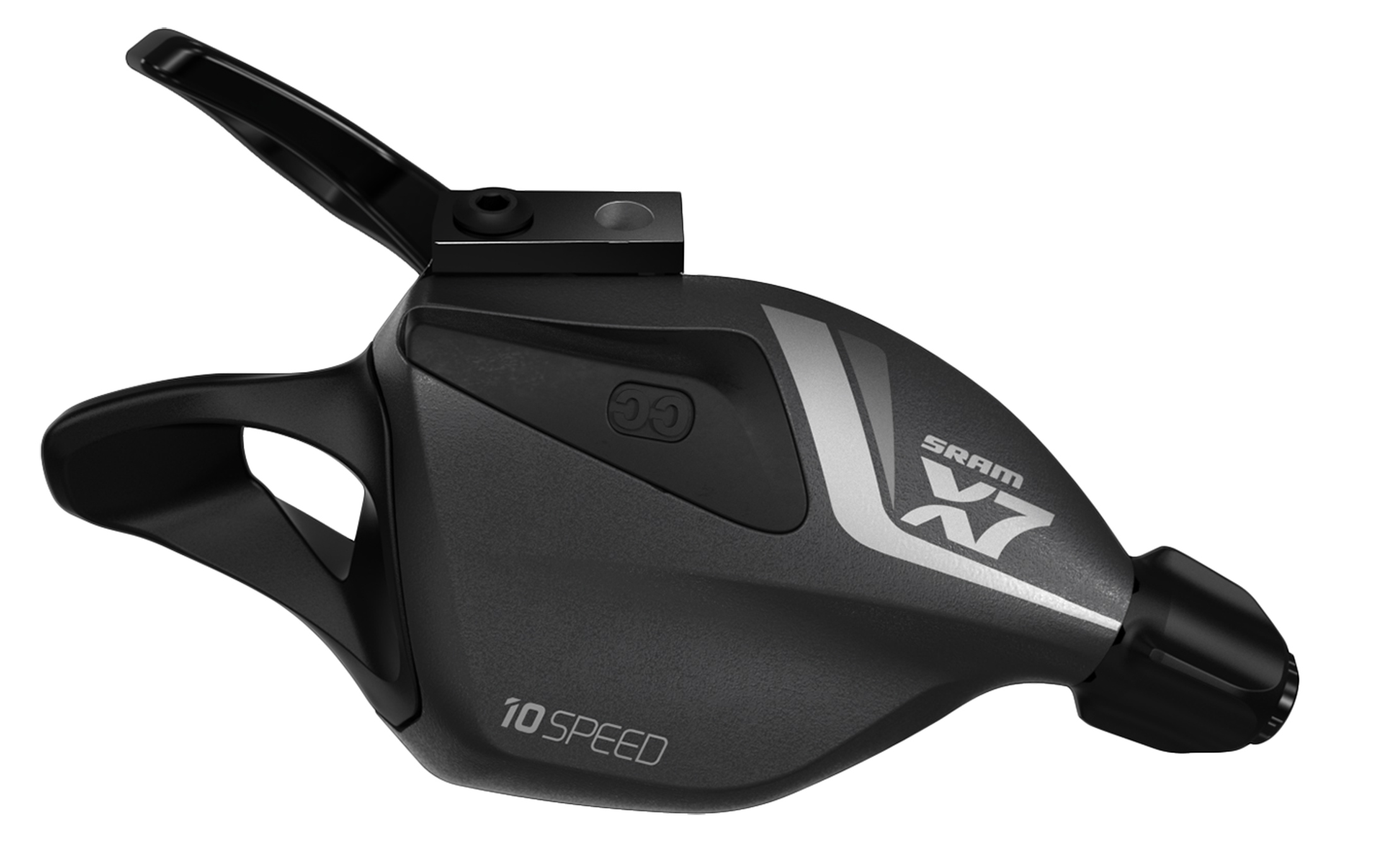

Rear Shifter	53031		SRAM X7 10-Speed Trigger Shift

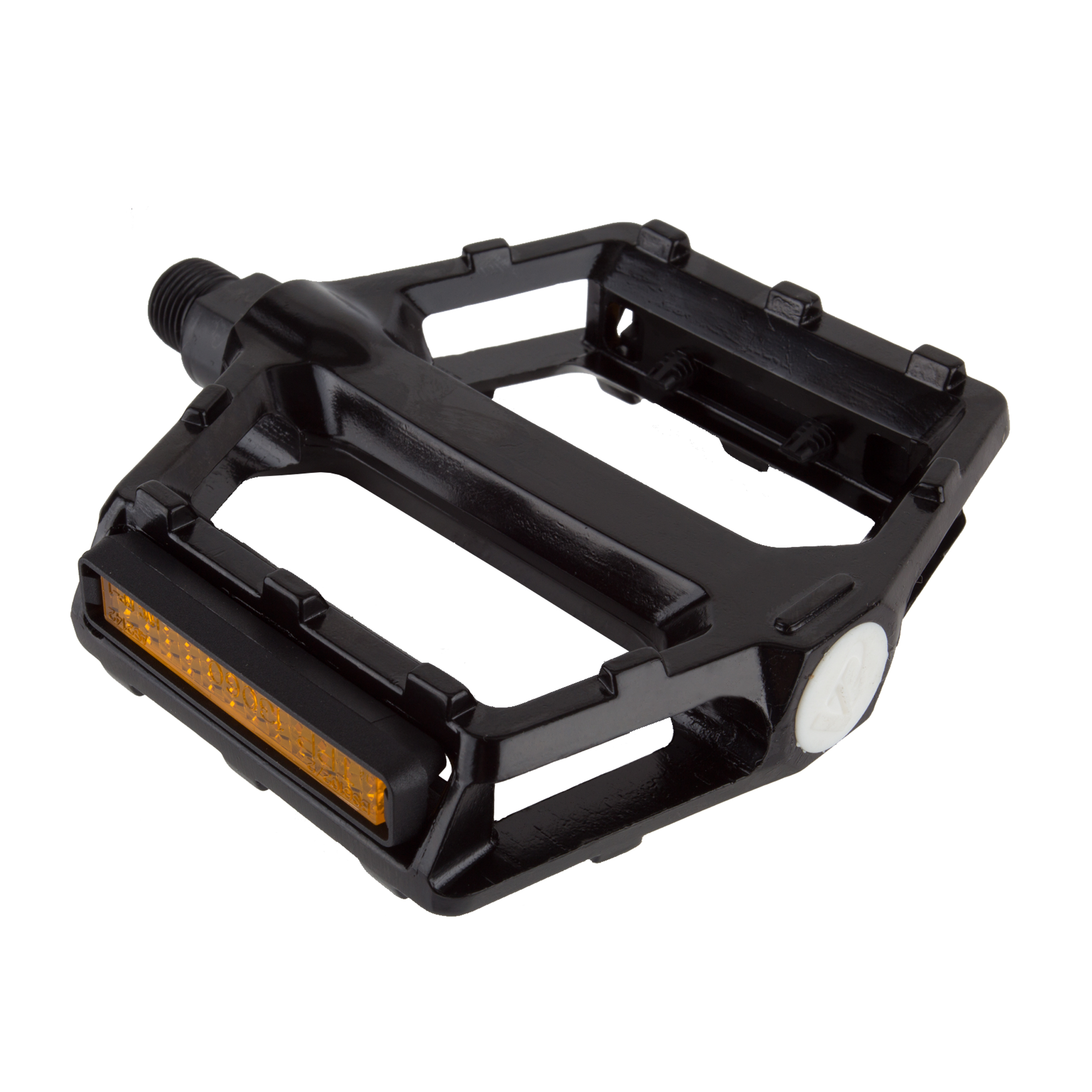

Pedals	41962		9/16", Alloy, Ball Bearing, Black
Brakes
Front Brake	13281		Avid BB-7, 6-bolt 180mm Rotor, Blk
Rear Brake	13281		Avid BB-7, 6-bolt 180mm Rotor, Blk
Brake Lever	12372		SRAM SD7, Alloy Linear Pull, Blk/Gry
Components

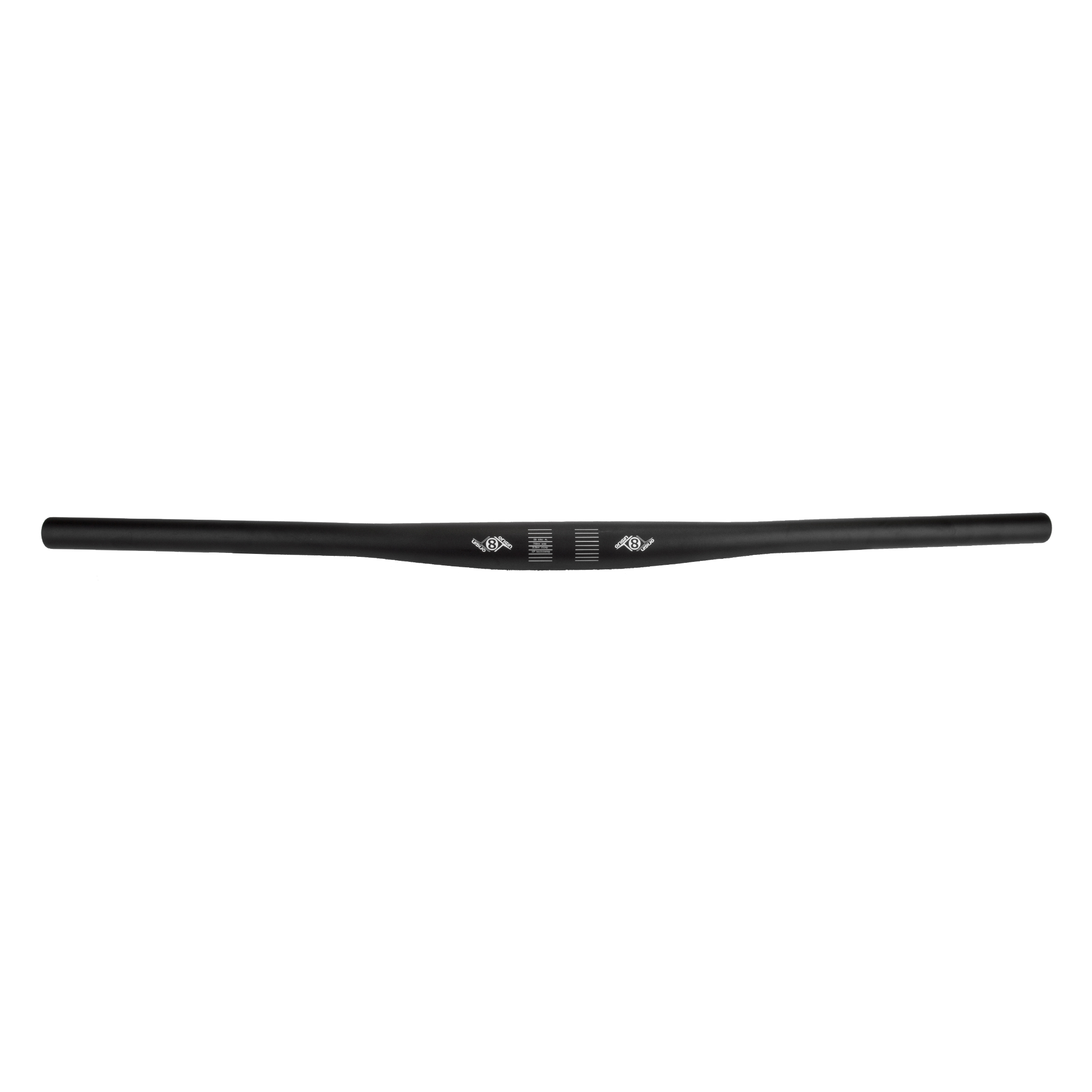

Handlebar	34328		Origin8 Alloy, 700mm Wide x 4° Rise x 10° Sweep, 31.8mm Clamp

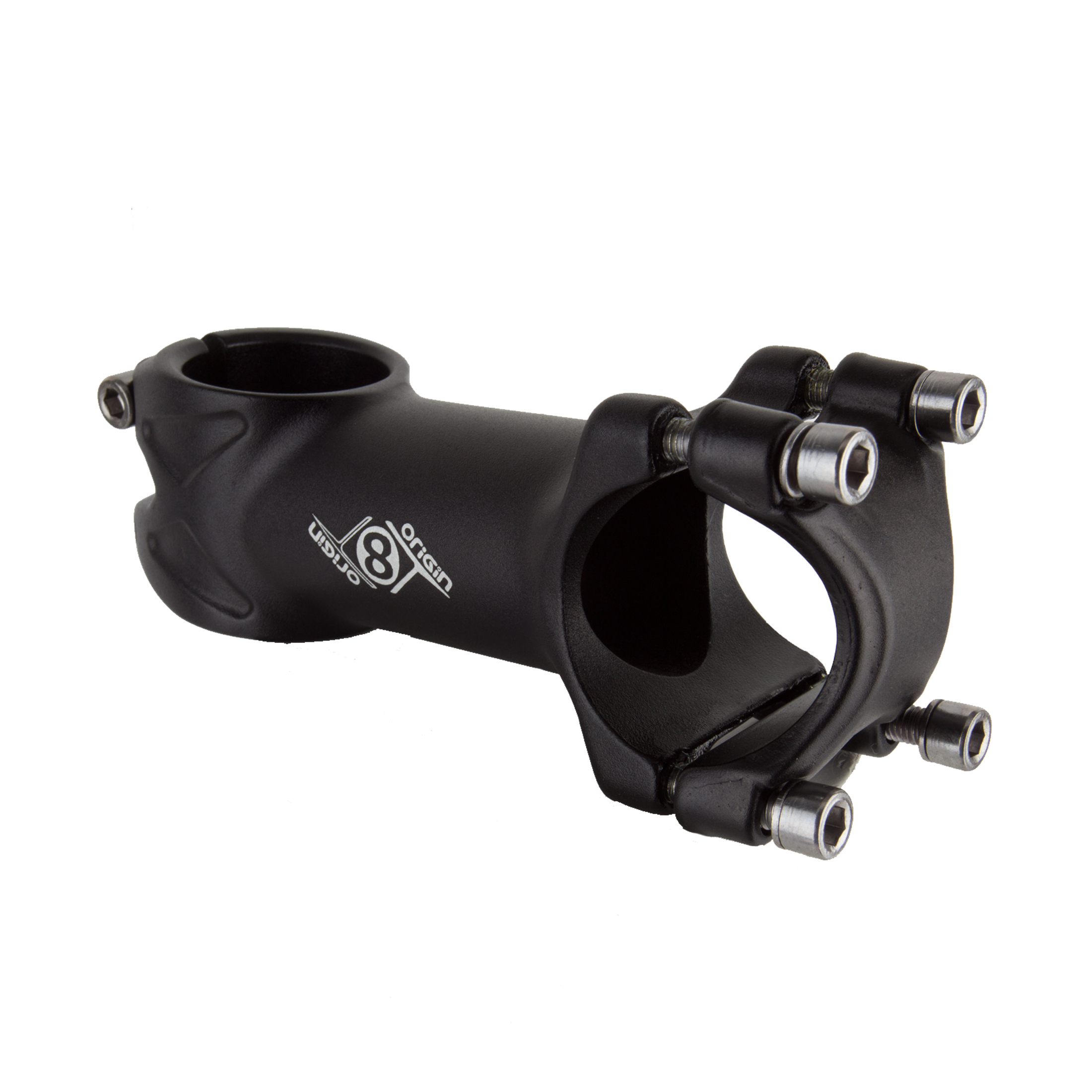

Stem	58734		Origin8 6061 Alloy W/4-Bolt Face Plate, 31.8 Clamp, Black (15.5", 17.5"/70mm) (19.5",21"/80mm)
Headset	35587		Tapered Integrated, 28.6x42x52x39.8mm, Black

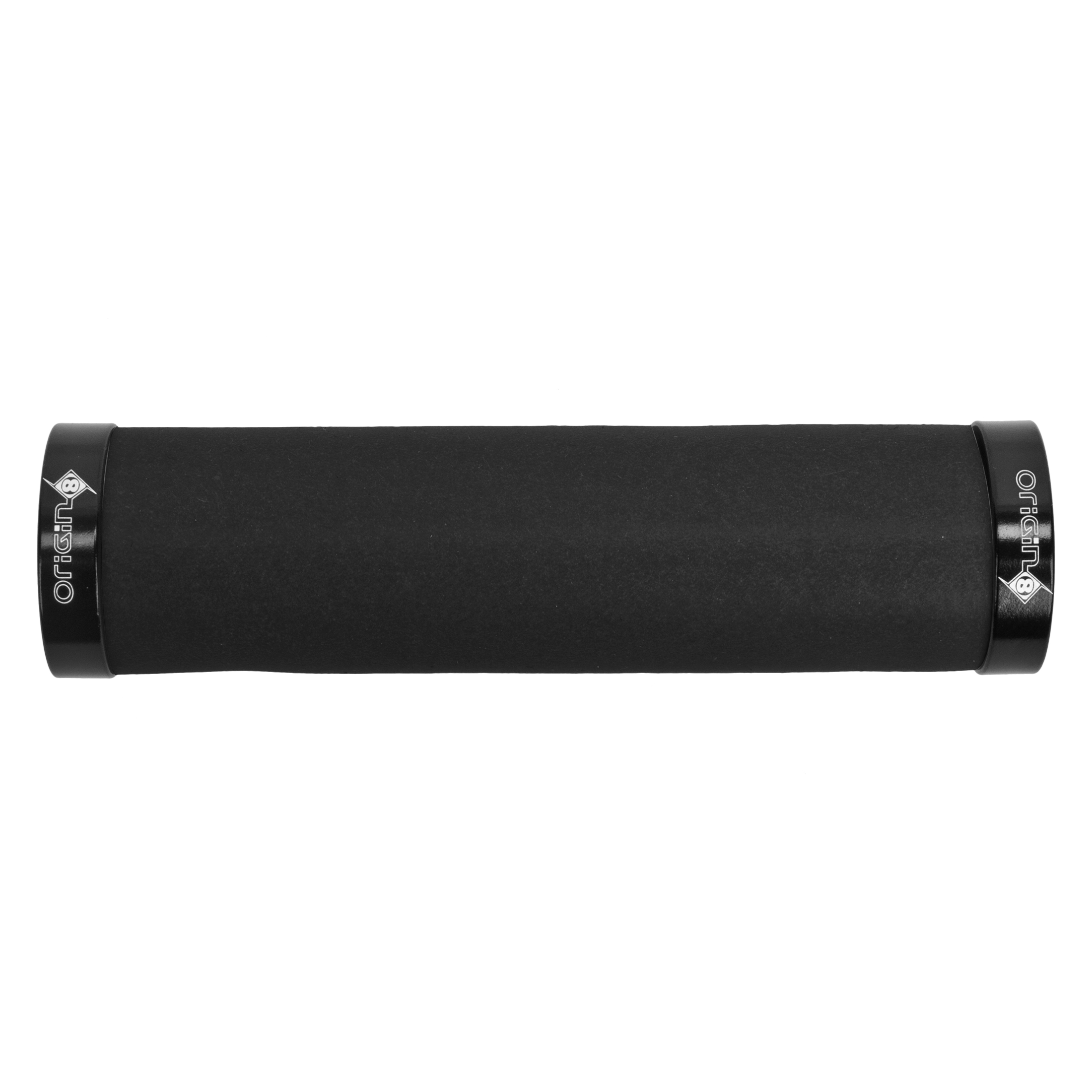

Grips	32218		Origin8 W/Alloy Locking Ends, 130mm, Black
Saddle	50236		Origin8 RSP, Cro-Mo Rails, Black

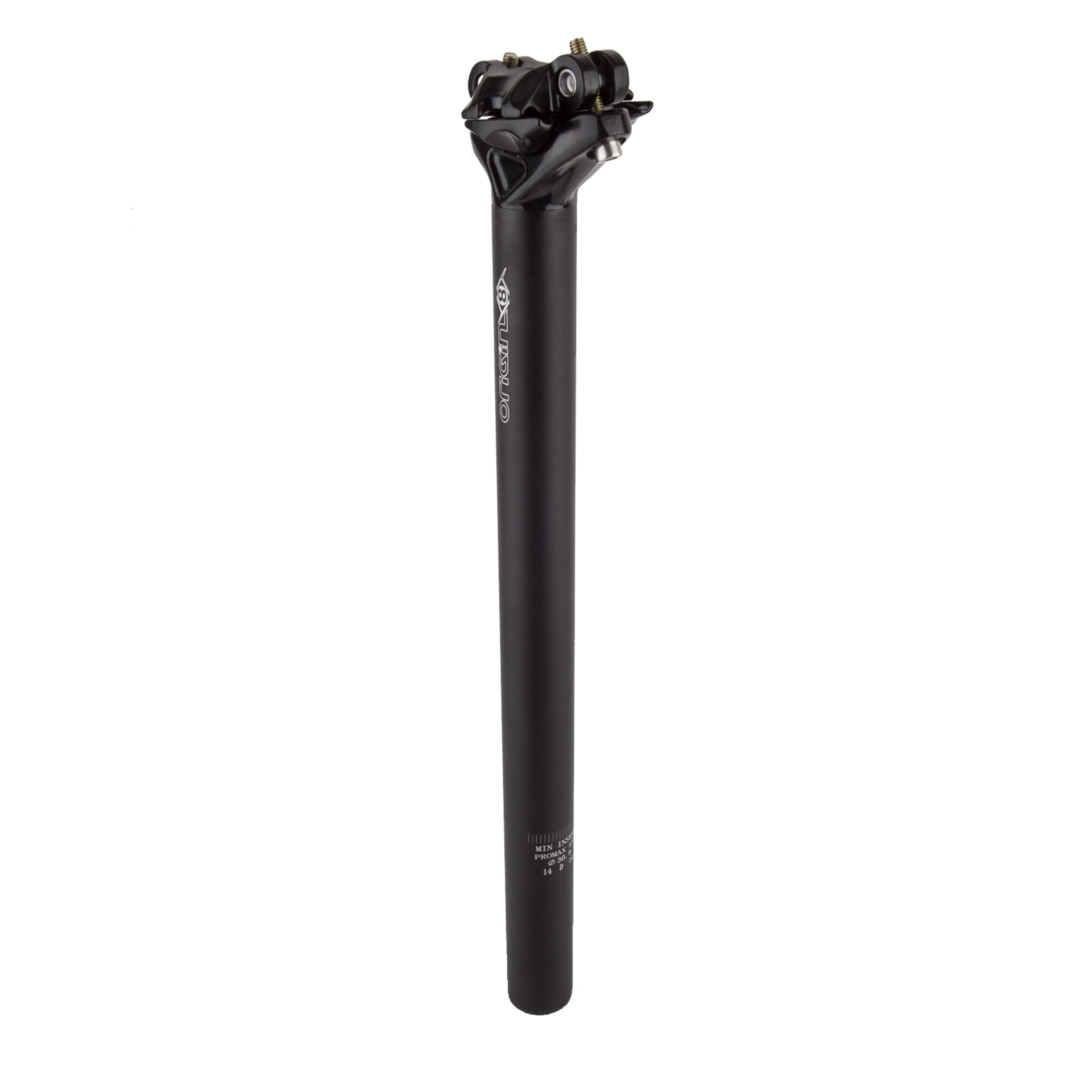

Seat Post	52325		Origin8, 6061 Alloy W/Integrated Clamp, 12mm Offset, 30.9mm, Black (15.5",17.5"/350mm) (19.5",21"/400mm)
Seat Clamp	51929		Alloy, 34.9mm I.D., with Bolt, Black
Wheels
Front Hub	36119		Origin8 Alloy, 32H x 14G with Q/R, Sealed Bearing, 6-Bolt Disc (135mm OLD)
Rear Hub	36120		Origin8 Alloy, 32H x 14G with Q/R, Sealed Bearing, 6-Bolt Disc (170mm OLD)
Spokes			14G Stainless Steel with Brass Nipples, Black
Rims	48909		Origin8 AT-PRO801 UL, Single Wall, Alloy, 26" x 80mm Wide w/Cutouts

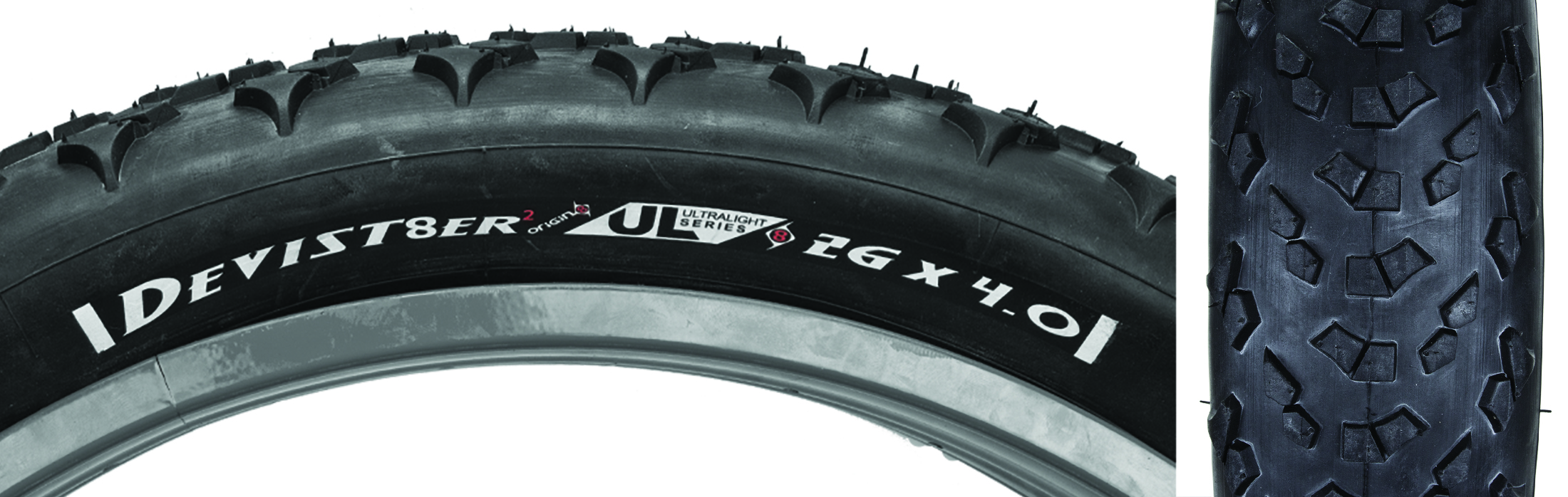

Tires	59616		Origin8 Devist-8er UL 26"x4" FLD, 120 TPI
Tubes	63444		26 x 4.0" Presta Valve
Replacement Parts
Service Parts			Description

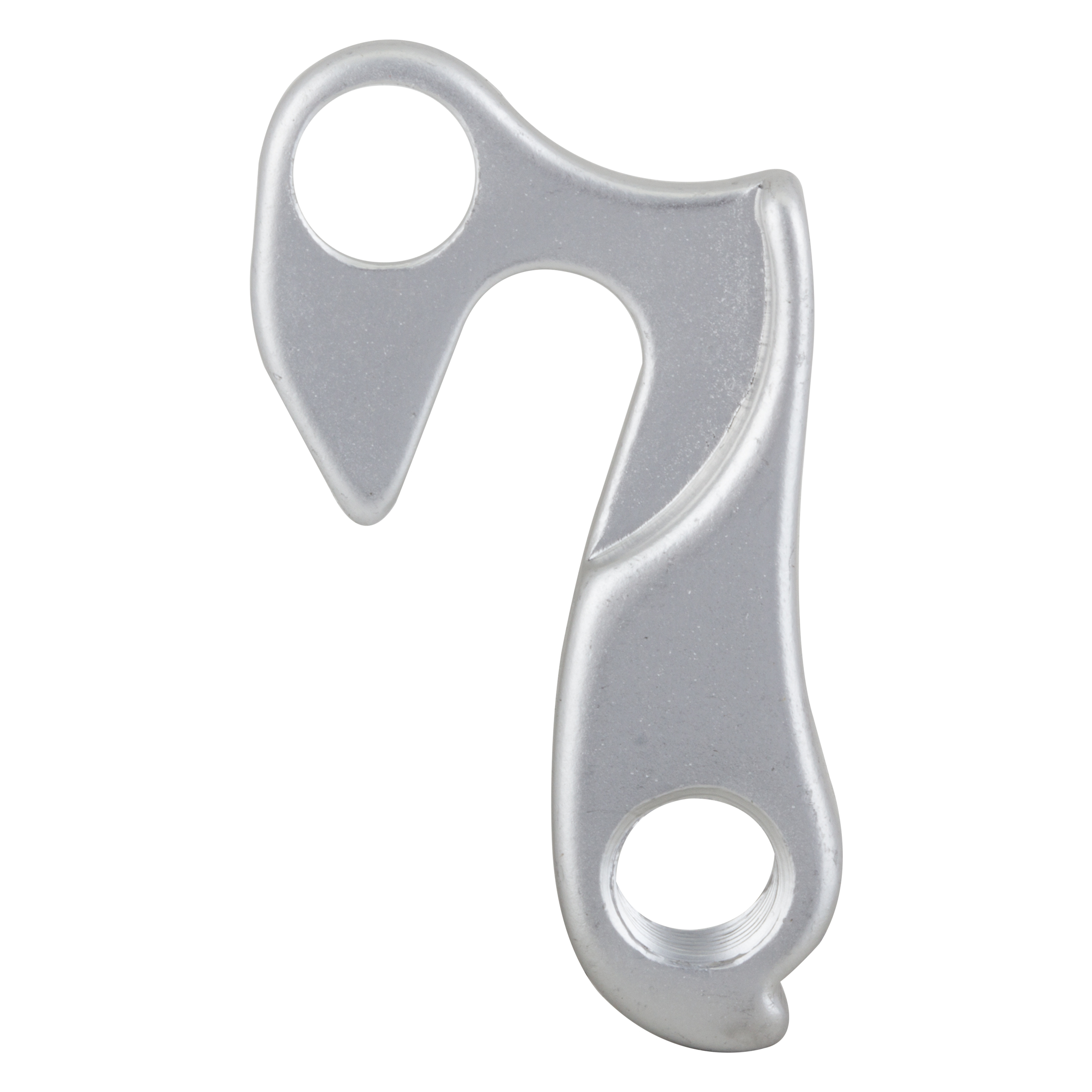

Derailleur Hanger	69525		Scout XLT Replaceable Derailleur Hanger
Hub Parts	370331		Origin8 Hub Cassette Body
Weight
Bike Weight			34 Lbs.
Rider Weight Limit			250 Lbs.
