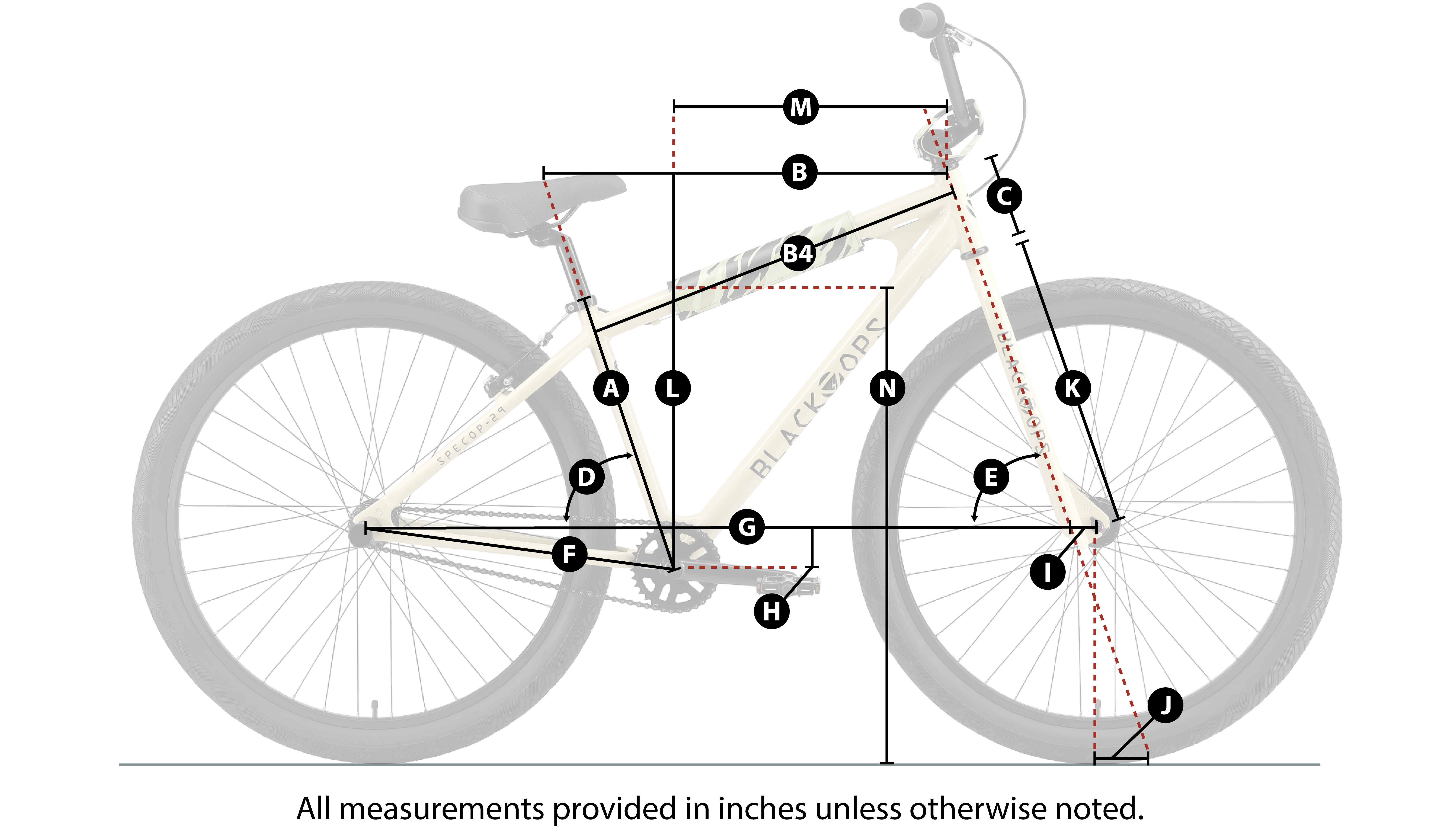

| Frame Size |
| 17" |
| Seat Tube, Center To Top |
A | 17" |
| Top Tube, Effective |
B | 24.4" |
| Top Tube, Actual |
B4 | 23.1" |
| Head Tube |
C | 4.9" |
| Seat Tube Angle |
D | 71° |
| Head Tube Angle |
E | 71° |
| Chainstay |
F | 18.5" |
| Wheelbase |
G | 43.5" |
| Bottom Bracket Drop |
H | 2.5" |
| Bottom Bracket To Ground |
H1 | 12.3" |
| Fork Offset |
I | 1.6" |
| Axle To Crown |
K | 17.5" |
| Step-Thru / Standover |
N | 29.5" |
| Minimum Saddle To Ground |
| 32.5" |
| Minimum Saddle To Pedal |
| 28" |
| Maximum Saddle To Pedal |
| 36" |
| Suggested Rider Height |
| 5'4" and up |
| Wheel Size |
| 29" |
| Crank Length |
| 175 mm |
| Stem Length |
| 50 mm |
| Handlebar Width |
| 30" Wide / 6" Rise |
