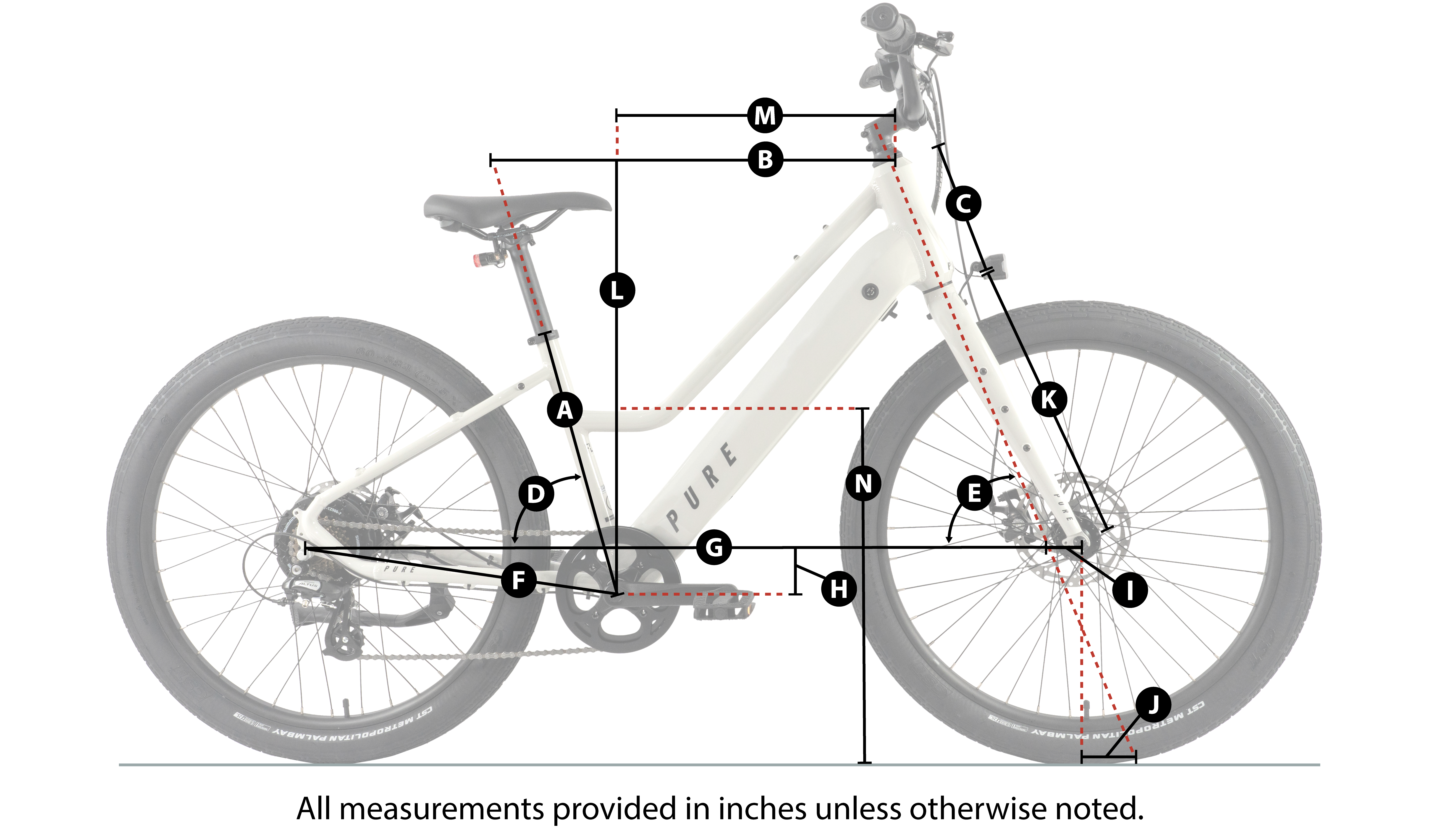

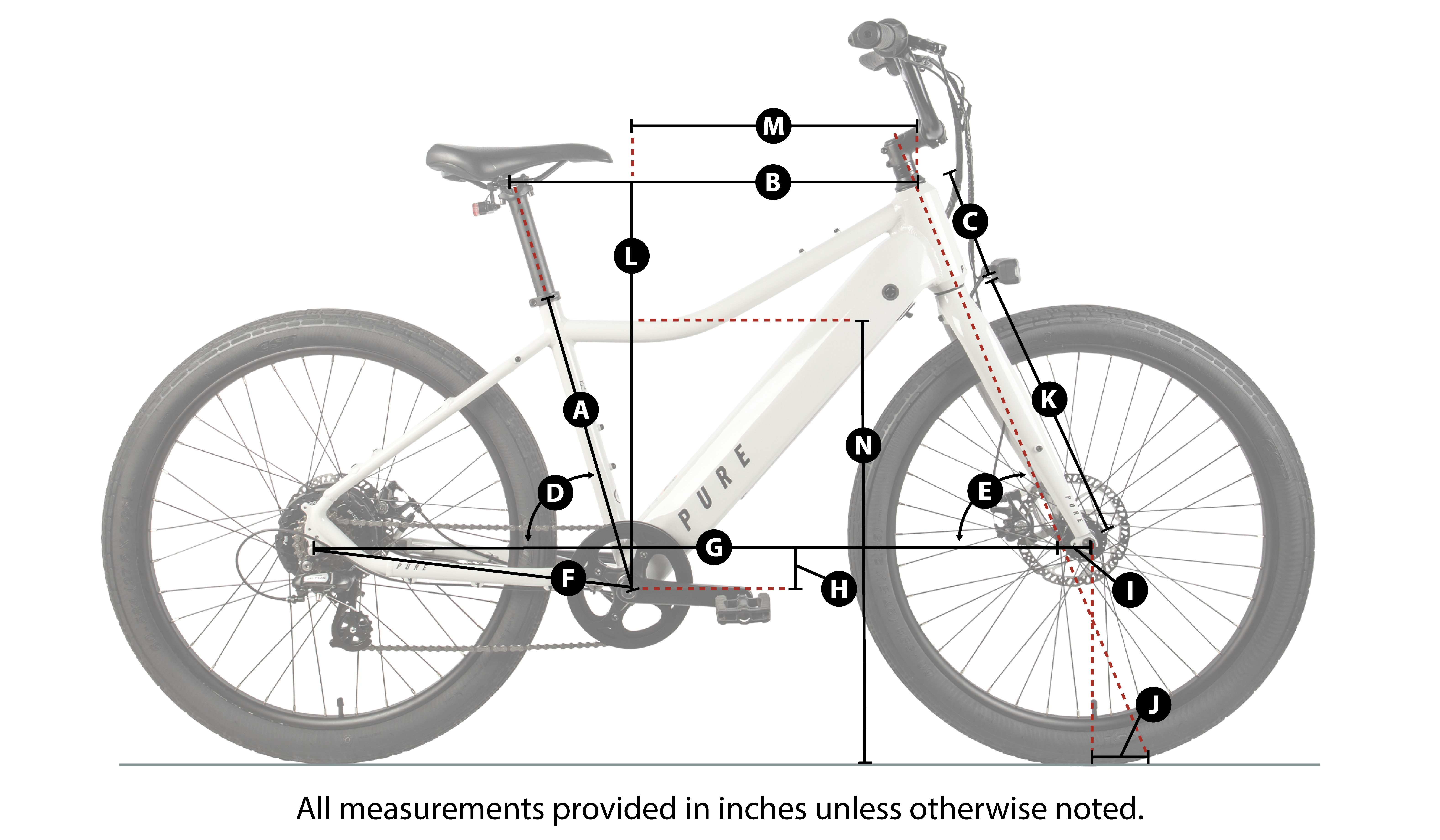

Frame Size		16" Step-Thru	18" Step-Over	20.5" Step-Over
Seat Tube, Center To Top	A	40.8cm	45.7cm	52cm
Top Tube, Effective	B	61.5cm	61.5cm	62.5cm
Head Tube	C	20.0cm	16.5cm	20.0cm
Seat Tube Angle	D	74°	74°	74°
Head Tube Angle	E	71°	71°	71°
Chainstay	F	47.5cm	47.5cm	47.5cm
Wheelbase	G	115.8cm	115.6cm	116.7cm
Bottom Bracket Drop	H	6.6cm	6.6cm	6.6cm
Bottom Bracket To Ground	H1	29.3cm	29.3cm	29.3cm
Fork Offset	I	5.5cm	5.5cm	5.5cm
Axle To Crown	K	42cm	42cm	42cm
Stack	L	63.7cm	60.4cm	62.8cm
Reach	M	43.2cm	44.2cm	44.2cm
Step-Thru / Standover	N	56cm	69cm	74cm
Minimum Step Through	O	56cm	69cm	74cm
Minimum Saddle To Pedal		26.25"	31.5"	31.5"
Maximum Saddle To Pedal		34.25"	36"	38.25"
Suggested Rider Height		5'0" - 5'7" (152-170cm)	5.5" - 6'0" (165 - 183cm)	5.9" - 6'4" (175 - 193cm)
Wheel Size		27.5"	27.5"	27.5"
Crank Length		170mm	170mm	170mm
Stem Length		60mm	60mm	60mm
Handlebar Width		680mm	680mm	680mm
