Frame Size		18"
Seat Tube, Center To Top	A	18"
Top Tube, Effective	B	26.5"
Head Tube	C	5.5"
Seat Tube Angle	D	70°
Head Tube Angle	E	70°
Chainstay	F	23.5"
Wheelbase	G	49.2"
Bottom Bracket Drop	H	2.4"
Bottom Bracket To Ground	H1	9.3"
Fork Offset	I	1.8"
Stack	L	20.8"
Step-Thru / Standover	N	13.5"
Minimum Step Through	O	13.5"
Minimum Saddle To Ground		27.5"
Minimum Saddle To Pedal, Trike		26.0"
Maximum Saddle To Pedal, Trike		33.0"
Suggested Rider Height		5'0" - 6'2"

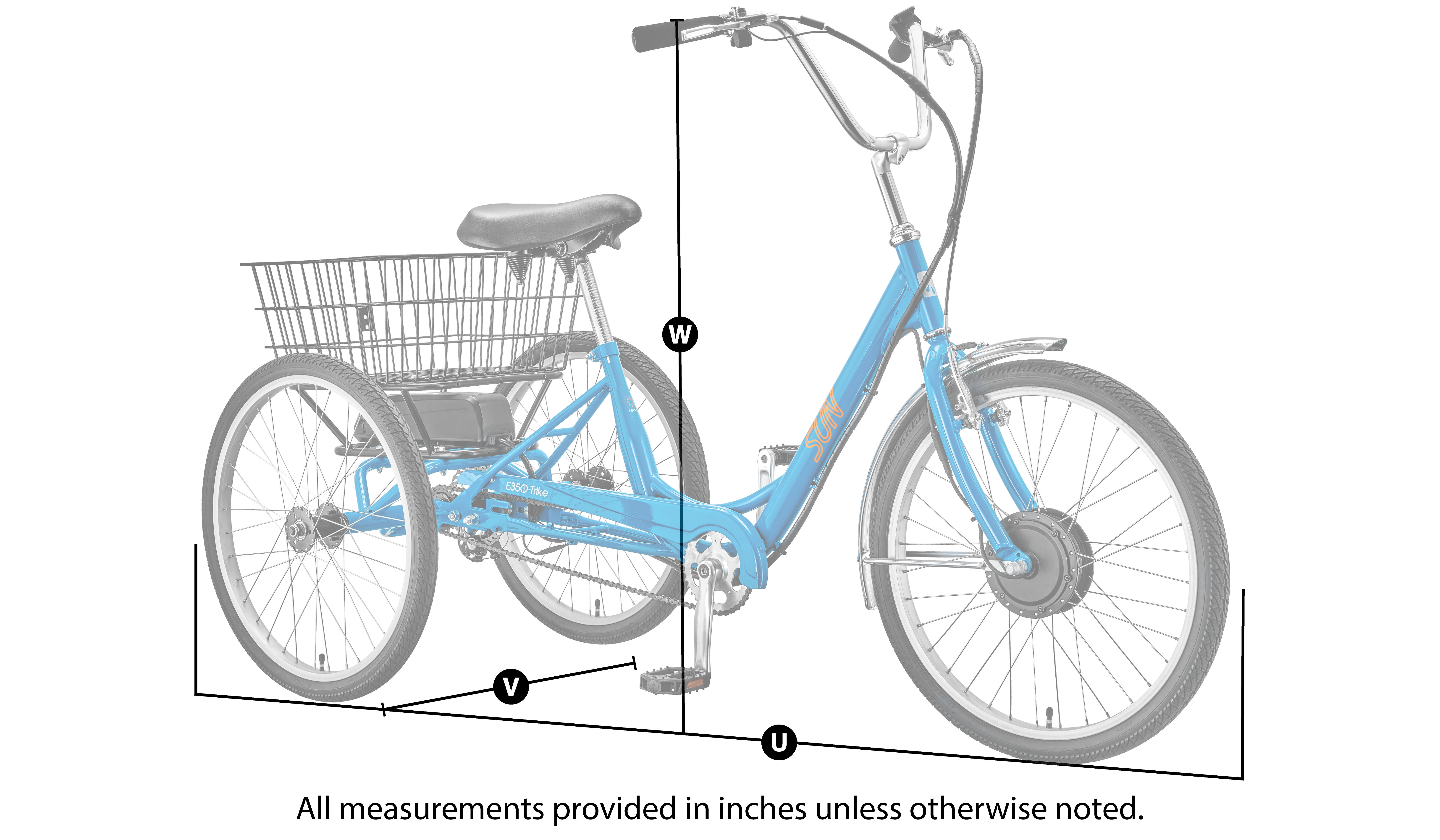

Overall Length, Trike	U	72"
Overall Height, Trike	W	46"
Overall Width, Trike	V	30.3"
Wheel Size		24"
Crank Length		165mm
Stem Length		60mm
Handlebar Width		28" Wide / 9" Rise
