UNLEASH YOUR ADVENTURE
Discover unparalleled versatility and performance on any ride.
ENGINEERED FOR EXCELLENCE

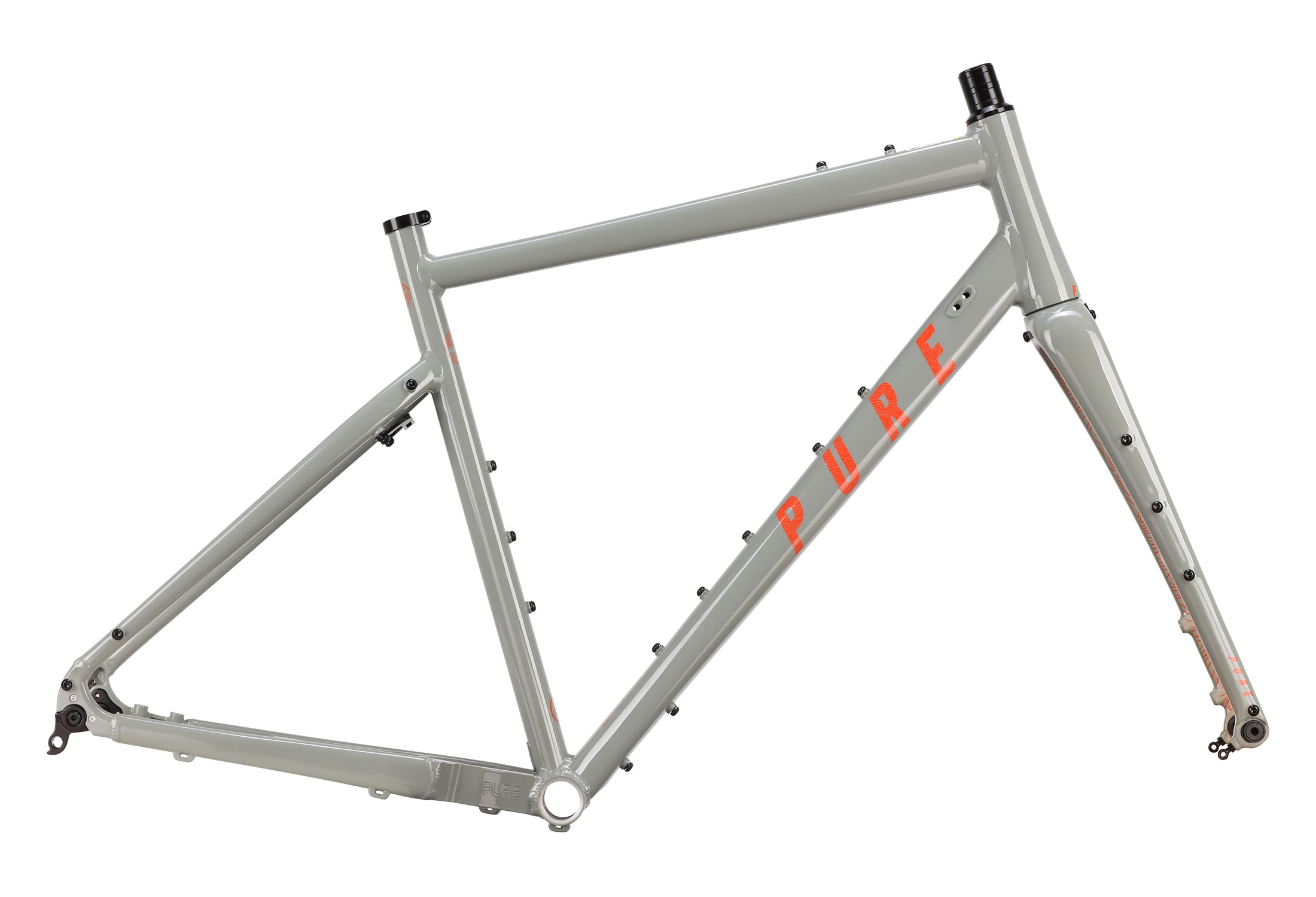

ADVENTURE FRAMESET
The Adventure AL features our X6 super-light, custom-butted alloy with progressive adventure-ready geometry, ensuring stability and comfort on any terrain.
STOP WITH CONFIDENCE
TRP SPYRE DISC BRAKES
TRP Spyre mechanical disc brakes deliver secure stopping power in all conditions. With a 180mm front rotor and a 160mm rear rotor, these brakes provide ample power and modulation for precise speed control.
CARBON FORK ADVANTAGE
One-piece carbon monocoque and a tapered carbon steerer for unparalleled strength and precision. With internal routing, various accessory mounts, removable fender mounts, and a 12 x 100 mm thru-axle, the fork offers clean aesthetics and secure handling. The 48/52mm adjustable offset Flip-Chip allows for rider-personalized handling to further enhance your riding experience.
UNCOMPROMISING PERFORMANCE
The SRAM Apex 1 drivetrain, with its single chainring and wide-range 11-speed cassette, delivers flawless and reliable shifting performance. The simplified design reduces maintenance and ensures you can focus on conquering any terrain.
COMFORT AND CONTROL
The Adventure handlebar, with its 12-degree flare and shallow drop, provides a natural and ergonomic hand position for increased comfort and control. Experience a confident ride, no matter where your adventures take you.
ADVENTURE AL BIKES
Embark on unforgettable adventures
SHOP ADVENTURE BIKES
FRAME SETS
Build the perfect gravel bike
SHOP ADVENTURE FRAMES

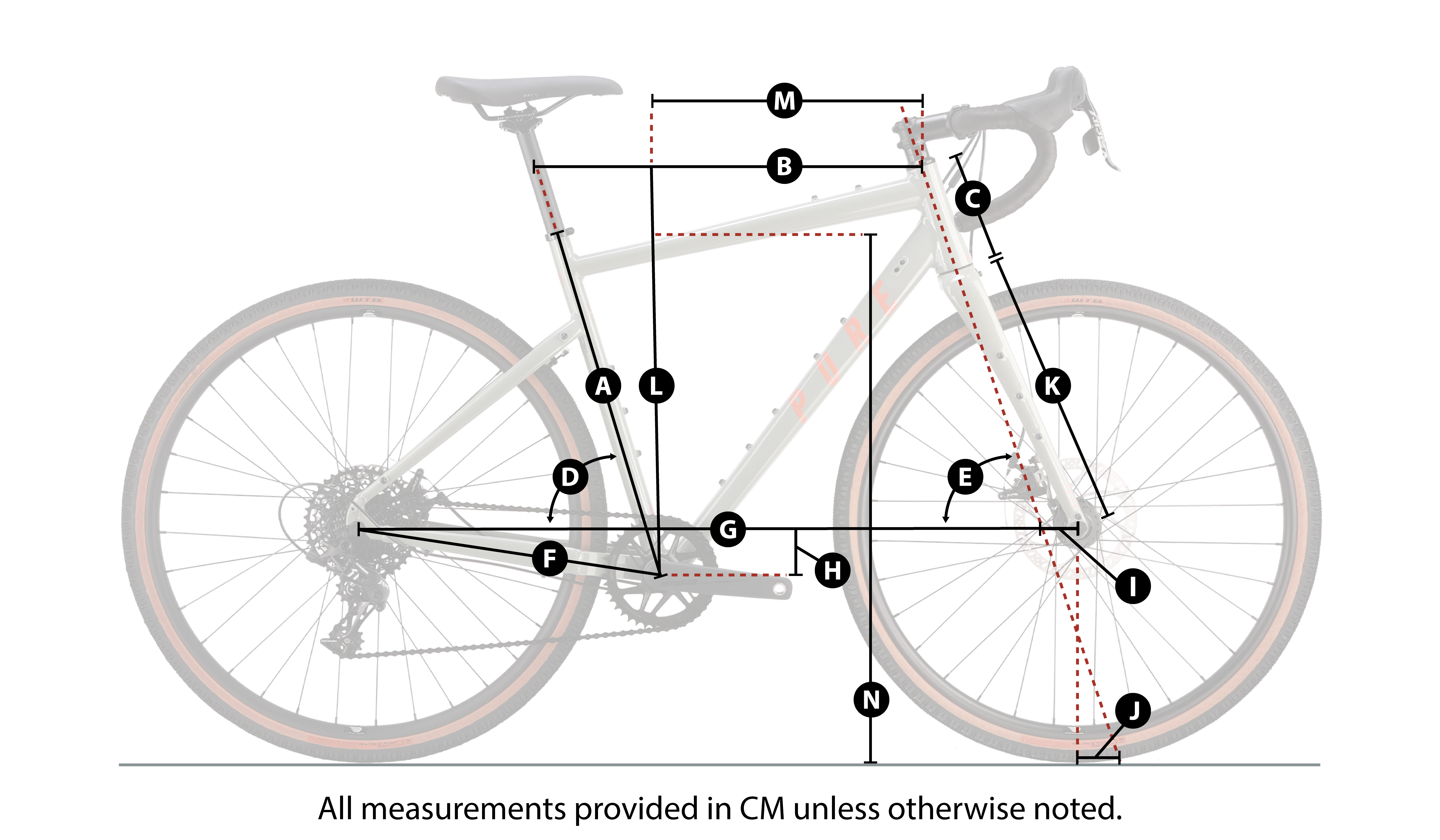

BIKE GEOMETRY
Frame Size 45 cm 48 cm 51 cm 53 cm 56 cm 59 cm
Seat Tube, Center To Top A 45 48 51 53 56 59
Top Tube, Effective B 52.3 53.6 55.3 56.5 59.6 62.5
Head Tube C 12.5 14.0 15.5 17.5 19.5 21.5
Seat Tube Angle D 74.5° 74° 73.5° 73.5° 73.5° 73.5°
Head Tube Angle E 70.5° 71° 71.5° 71.5° 71.5° 71.5°
Chainstay F 43.5 43.5 43.5 43.5 43.5 43.5
Wheelbase G 102.5 102.9 103.6 104.9 108.0 111.0
Bottom Bracket Drop H 7.0 7.0 7.0 7.0 7.0 7.0
Fork Offset I 48 / 52 mm 48 / 52 mm 48 / 52 mm 48 / 52 mm 48 / 52 mm 48 / 52 mm
Trail J 71 / 75 mm 67 / 71 mm 64 / 68 mm 64 / 68 mm 64 / 68 mm 64 / 68 mm
Axle To Crown K 40.3 40.3 40.3 40.3 40.3 40.3
Stack L 55.0 56.6 58.4 60.1 62.2 63.9
Reach M 37.0 37.3 38.0 38.7 41.2 43.5
Step-Thru / Standover N 72.9 75.4 77.9 79.8 82.2 84.6
Suggested Rider Height 4'9" - 5'2" 5'2" - 5'5" 5'5" - 5'8" 5'8" - 5'11" 5'11" - 6'1" 6'1" - 6'5"
Wheel Size 700c 700c 700c 700c 700c 700c
Crank Length 170 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm
Stem Length 70 mm 70 mm 80 mm 80 mm 90 mm 90 mm
Handlebar Width 44 cm 44 cm 46 cm 46 cm 48 cm 48 cm
BIKE SPECS
This is some text inside of a div block.
FRAMESET
Frame X6 Custom Butted Superlight Alloy, 12 x 142 mm thru-axle, flat-mount disc
Fork Carbon Monocoque, Tapered carbon steerer, 12 x 100 mm thru-axle, flat-mount disc, Flip Chip Dropout
DRIVETRAIN
Crankset FSA Omega Direct Mount 1X, 19 mm chromoly spindle
Chainring FSA Omega 1X MegaTooth A, steel, 40T
Bottom Bracket FSA Mega Exo BB-4000, BSA BB
Cassette SRAM PG-1130, 11-42, 11-speed
Chain KMC X-11, Black
Rear Derailleur SRAM APEX 1, Long Cage, 11-speed, 42T max cog
Rear Shifter SRAM APEX, 11-speed
Pedals VP-536, 9/16"
BRAKES
Front Brake TRP Spyre C Mechanical Disc, Flat Mount, 180mm Rotor
Rear Brake TRP Spyre C Mechanical Disc, Flat Mount, 160mm Rotor
Front Brake Lever SRAM APEX 1, Mechanical
Rear Brake Lever SRAM APEX, Mechanical
COMPONENTS
Handlebar Pure Cycles Adventure, 6061 Alloy, 31.8mm Clamp, 12 Deg Flare, 125mm Drop, 80mm Reach
Stem Pure Cycles, 6061 Alloy, +/- 6 deg
Headset 1 1/8" upper - 1 1/2" lower, integrated
Grips EVA Foam, Black with End Caps
Saddle WTB Volt Medium, 142 x 265mm, Steel Rail, Black
Seat Post Alloy w/ two bolt integrated clamp, 27.2 x 350mm, Black
Seat Clamp Alloy, 31.8mm I.D., With Bolt
WHEELS
Front Wheel 700c x 32H, 25mm ID, 12mm thru-axle, 6-bolt disc
Rear Wheel 700c x 32H, 25mm ID, 12mm thru-axle, 6-bolt disc
Front Hub Alloy Disc, 32H, 6 bolt, 12 x 100mm thru-axle
Rear Hub Alloy Disc, 32H, 6 bolt, 12 x 142mm thru-axle
Spokes 14G Stainless Steel with alloy nipples (F-290 / D-286 - ND-288 / N-14mm)
Rims J25D 700c x 32H x 14G, PV, Alloy, Black
Tires WTB Venture / 700 x 40mm, TCS Light, Black Wall
Tubes 700c x 40mm, Super Light Presta Valve (48mm)
REPLACEMENT PARTS
Derailleur Hanger Frame Dropout and Derailleur Hanger
Front Thru-Axle Front Wheel thru-axle 100 x 122mm, M12 x 1.5P
Rear Thru-Axle Rear Wheel thru-axle 142 x 157mm, M12 x 1.5P
Front Fender Mount Removeable Fork Fender Mounts
Rear Fender Mount Frame Removeable Fender Mounts
Fork Grommets Carbon Fork Cable Grommet Set
Fork Dropout Fork Dropout Hardware Kit
WEIGHT
Bike Weight 24.3 lbs. (51 cm)
Weight Limit 275 lb (combined weight of bicycle, rider, and cargo)
